What is the Juniper Pig Lift for?

It was designed for safe pig handling and to make hoof trimming easier — raising the pig gently off the ground so its legs hang free and its body rests on a heavily padded bar. It is built to be portable.

How does a pig get in and out?

Remove the back door and the pig walks in; replace and lock the door, then lift with the touch of a button. When the procedure is complete, lower the lift, remove the front door, and the pig walks right out onto the ground.

How high does it lift?

The pig can be lifted up to 32 inches from the ground surface.

What size pigs does it fit?

The width for the pig is adjustable to 14 inches or 20 inches.

How much weight can it handle?

The lifting winch is rated at 1,500 lbs and is secured with a safety lockout system; the carabiners are rated at 2,697 lbs and the webbing at 1,600 lbs.

Is it easy to move around a facility?

Yes. The lift is built on a four-caster wheeled frame so it can be rolled where it's needed and stored out of the way between procedures.

Flagship product · $4,750

Juniper Pig Lift

A portable, winch-assisted lift that raises a pig gently off the ground for calm, controlled hoof trimming — legs free, body fully supported on a heavily padded bar.

Buy on Shopify · $4,750 Request a quote

The Juniper Pig Lift — a dark steel wheeled frame with an overhead winch and yellow safety webbing supporting a padded central bar, photographed outdoors against a metal building.

How it works

One person, one calm lift.

01
Remove the back door. The pig walks in, then the door is replaced and locked behind it.
02
Lift with the touch of a button. The winch raises the pig smoothly, up to 32 inches off the ground.
03
The pig's legs hang down through the open area while its body rests, steady and supported, on a heavily padded bar — leaving hooves free to trim.
04
Once the work is done, lower the lift, remove the front door, and the pig walks right back out onto the ground.

In detail

A closer look.

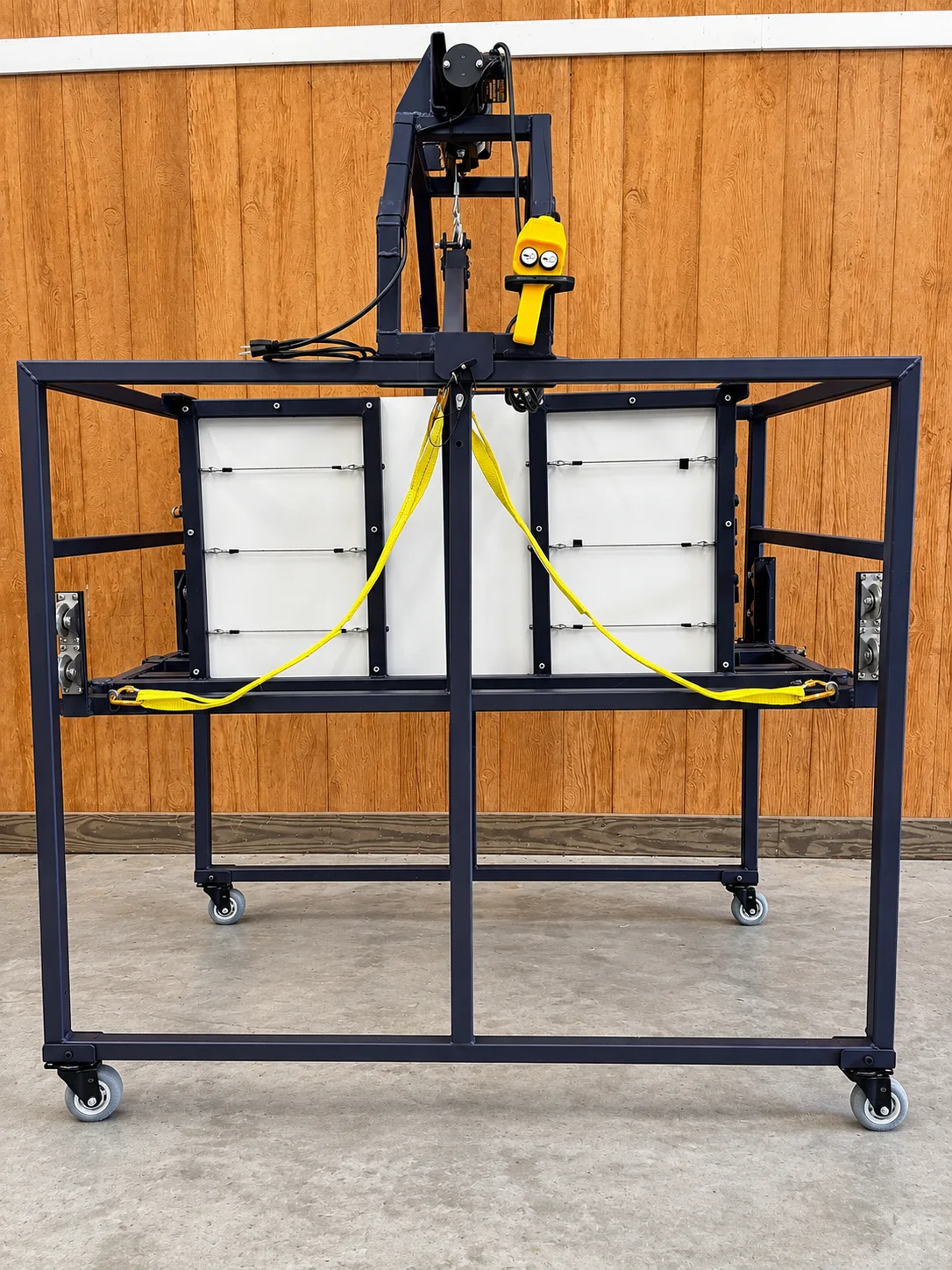

Front view of the Juniper Pig Lift — a dark steel four-caster frame with the winch arm overhead, yellow pendant control, and webbing cradling the raised chute. — The full lift on its four-caster frame, chute raised.

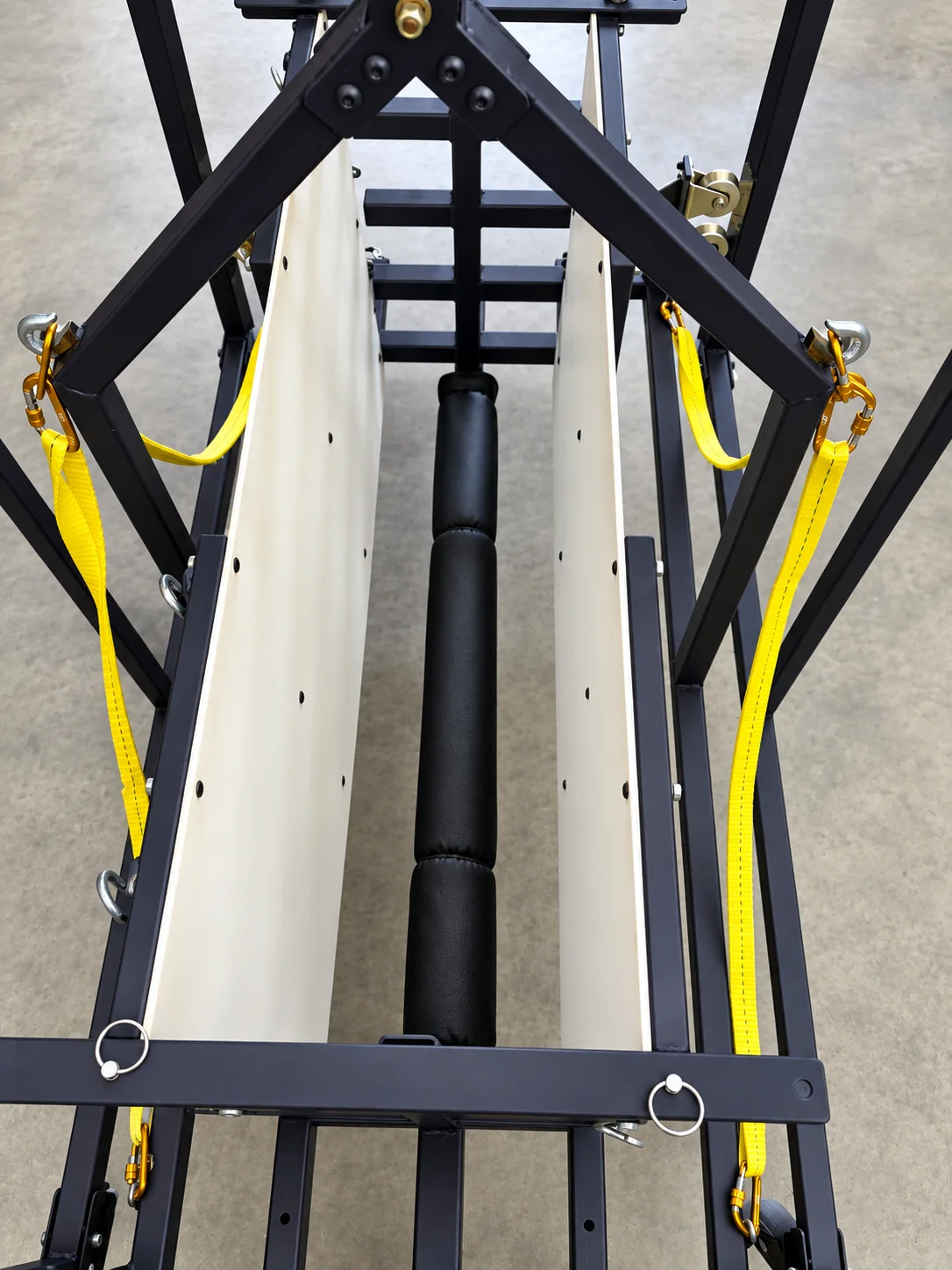

Top-down view into the chute of the Juniper Pig Lift, showing the heavily padded central bar between two smooth side panels with yellow webbing at each corner. — Looking down the chute — the heavily padded central bar the pig's body rests on.

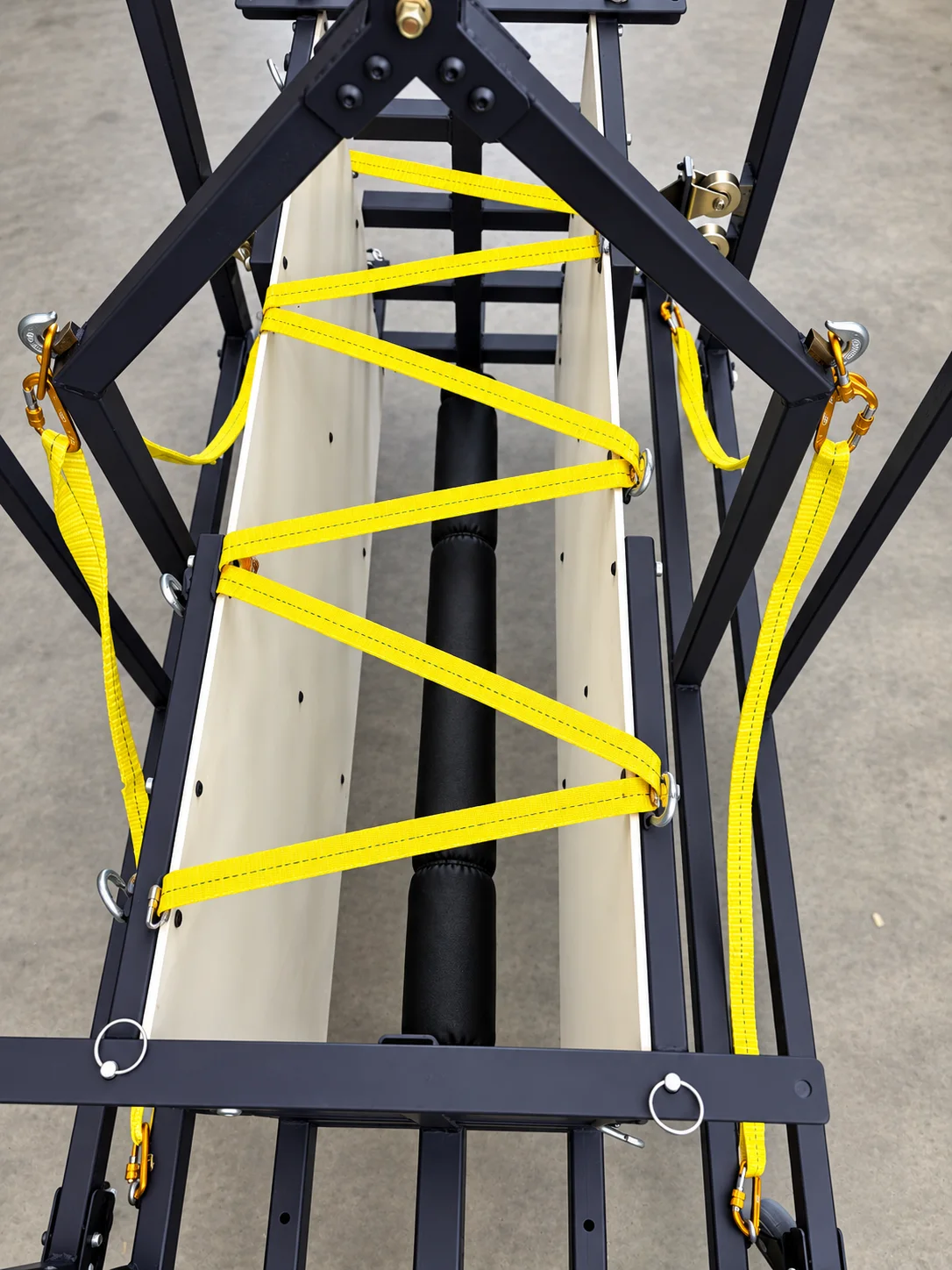

Top-down view of the chute with yellow webbing laced back and forth across the padded central bar. — Webbing laced across the chute, anchored at each side.

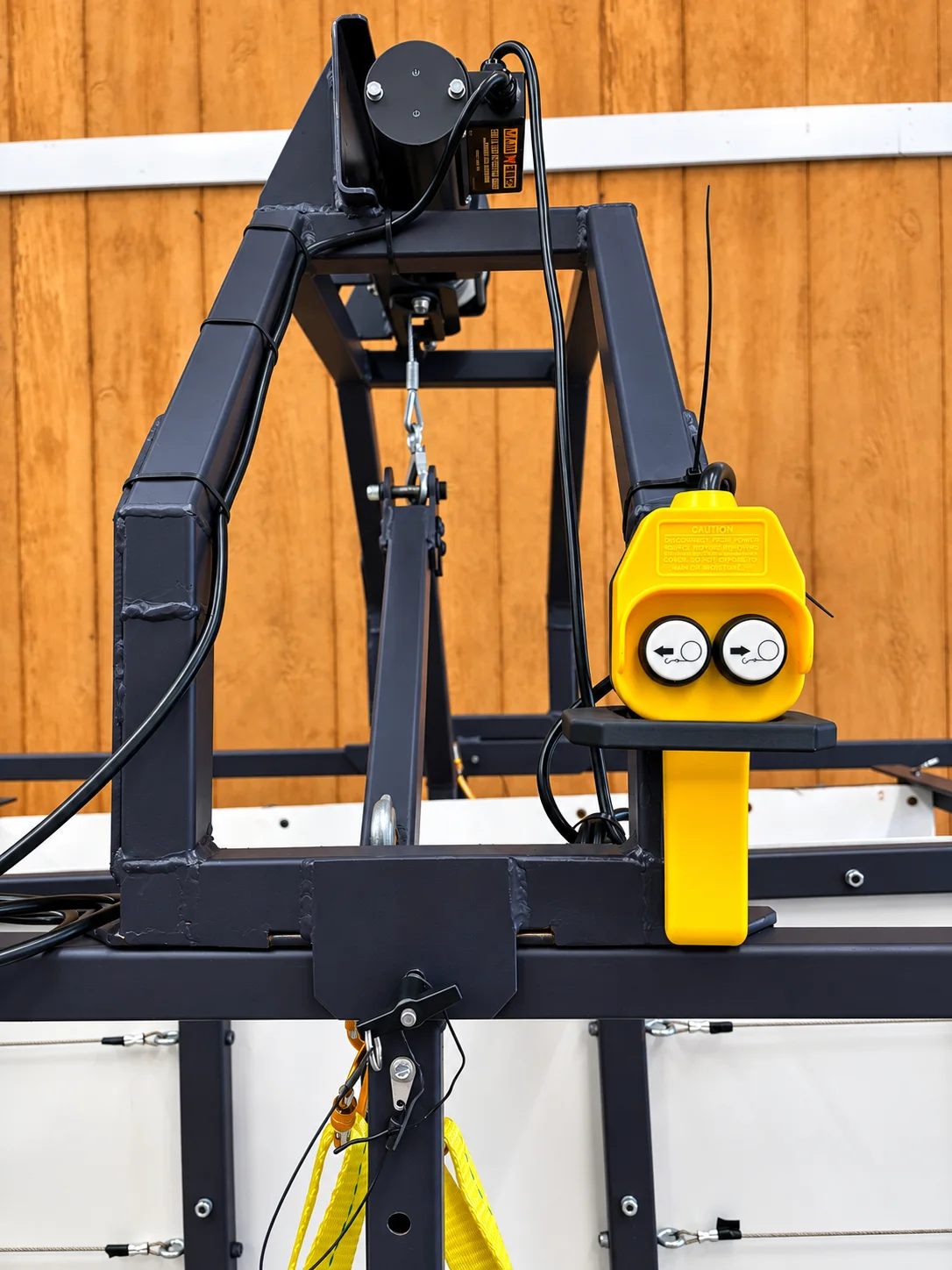

Close-up of the winch motor at the top of the frame and the yellow two-button pendant control resting on its bracket. — The winch and its two-button pendant — lift and lower with the touch of a button.

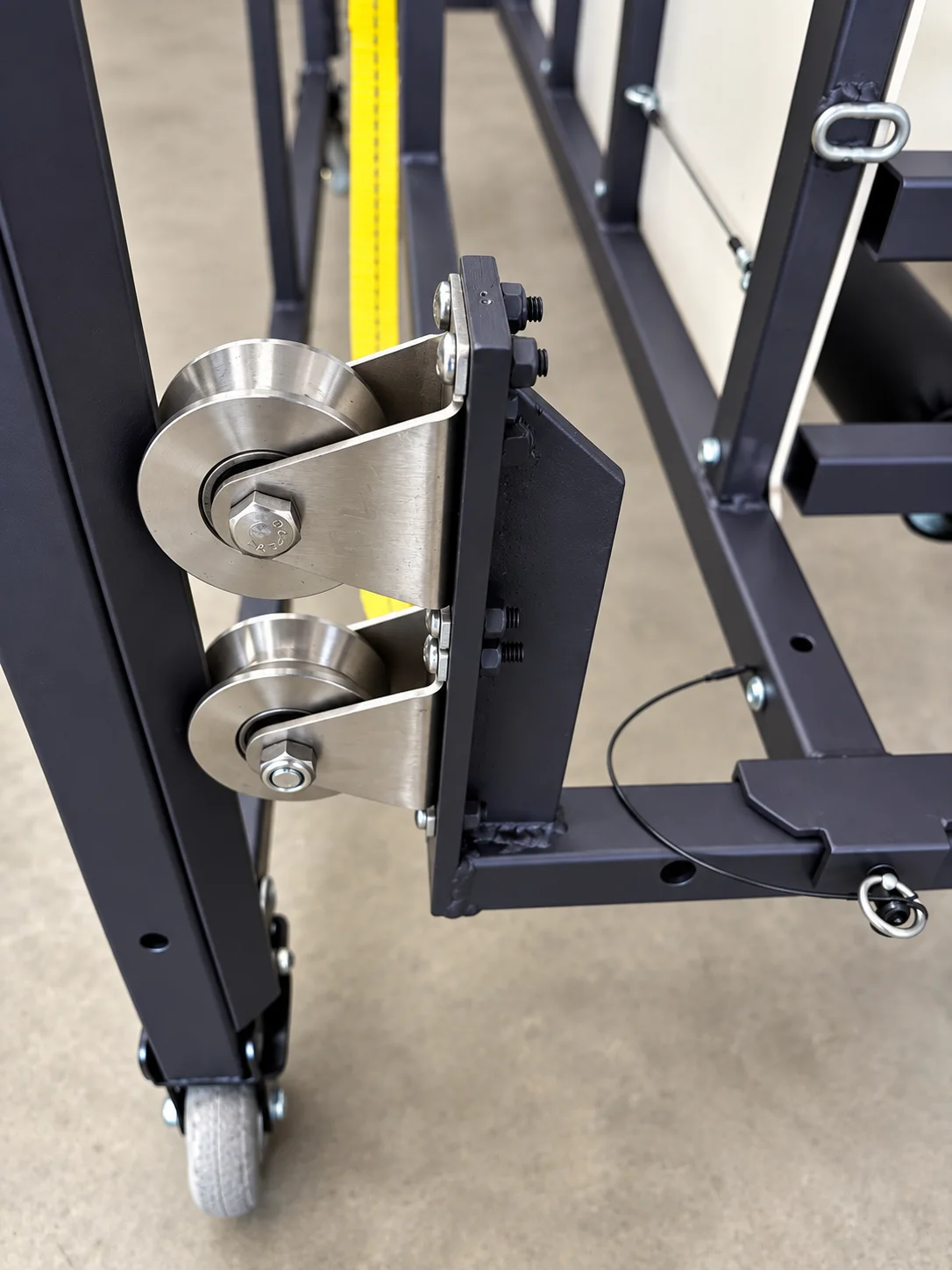

Close-up of two stainless steel guidewheels bolted to the frame, routing the yellow lift webbing, with a caster wheel below. — Stainless guidewheels for a smooth lift.

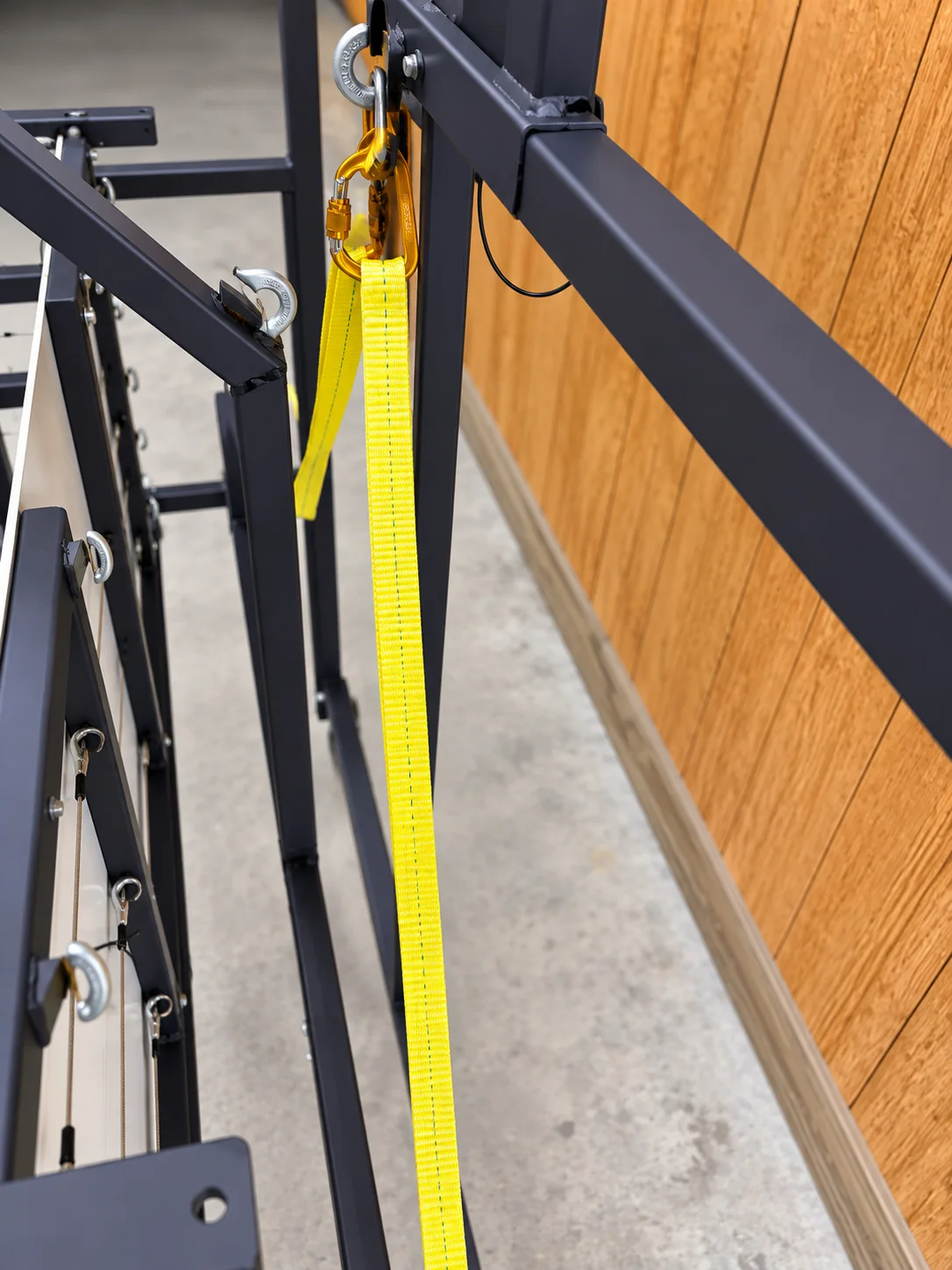

Close-up of yellow safety webbing clipped to the frame with a carabiner through an eye bolt. — Carabiner anchor points — rated at 2,697 lbs, with webbing rated at 1,600 lbs.

Juniper, a black potbellied pig wearing a black and pink custom prosthetic on her front right leg, standing in the doorway between a wooden shelter and a metal pen.

Named for Juniper

The pig this lift is named for.

Juniper was born with a deformation in her front leg. At four months old, she was dumped on Craigslist.

A company that makes custom prosthetics — for all kinds of species — built her one of her own.

This lift is named for her.

Key facts

At a glance.

Best for: Hoof trimming & handling
For: Pigs
Lift height: Up to 32″ off the ground
Adjustable width: 14″ or 20″
Winch capacity: Rated 1,500 lbs
Safety hardware: Carabiners 2,697 lbs · webbing 1,600 lbs
Dimensions: 84″ H × 38″ W × 62″ L
Mobility: Four-caster wheeled frame — portable
Price: $4,750 USD

FAQ

Common questions.

What is the Juniper Pig Lift for?: It was designed for safe pig handling and to make hoof trimming easier — raising the pig gently off the ground so its legs hang free and its body rests on a heavily padded bar. It is built to be portable.
How does a pig get in and out?: Remove the back door and the pig walks in; replace and lock the door, then lift with the touch of a button. When the procedure is complete, lower the lift, remove the front door, and the pig walks right out onto the ground.
How high does it lift?: The pig can be lifted up to 32 inches from the ground surface.
What size pigs does it fit?: The width for the pig is adjustable to 14 inches or 20 inches.
How much weight can it handle?: The lifting winch is rated at 1,500 lbs and is secured with a safety lockout system; the carabiners are rated at 2,697 lbs and the webbing at 1,600 lbs.
Is it easy to move around a facility?: Yes. The lift is built on a four-caster wheeled frame so it can be rolled where it's needed and stored out of the way between procedures.

Products

Two tools, one philosophy.

Available now · $60

Pig Intubation Assist Tool

Used alongside a laryngoscope to gently reposition the epiglottis and aid fast, trauma-free intubation in swine.

Learn more Buy on Shopify

Ready to bring one into your facility?

Buy the Juniper Pig Lift directly on Shopify, or reach out with questions about fit, shipping, or configuration and we'll get back to you within a business day.

Buy on Shopify · $4,750 Request a quote
